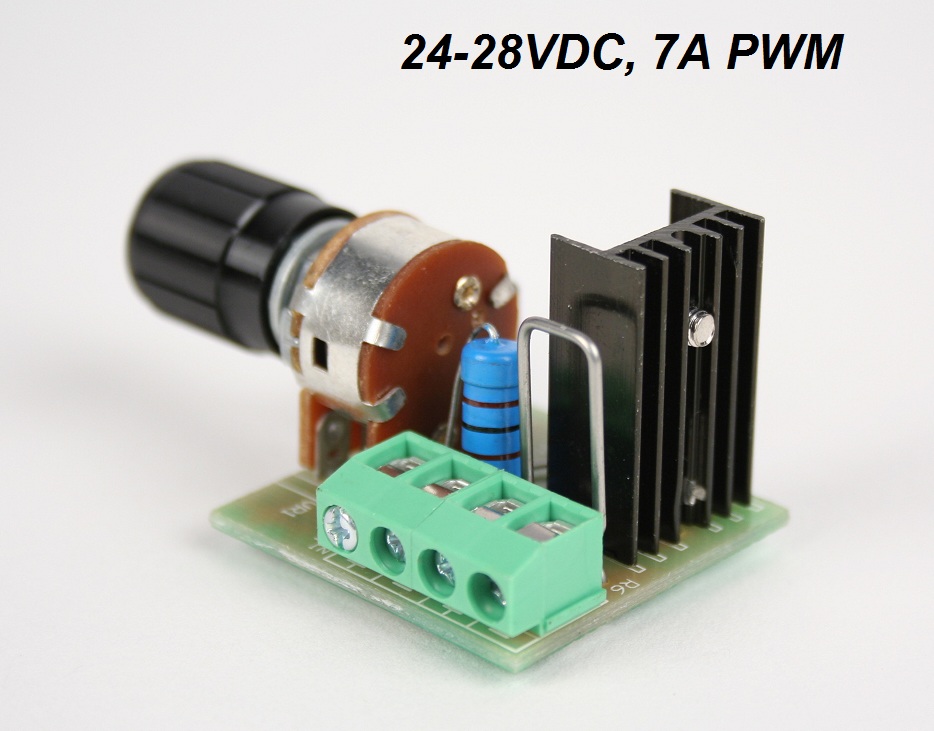

24 Volt DC PWM (Pulse Width Modulation) dimmer - 7A capacity

Single Channel 24-28VDC Dimmer - 7A Capacity with Over-current protection

Capacity of 7 Amp at 27.4VDC dimmer. 100 Hz PWM (pulse wave modulation) for precise control
Integrated on/off switch and smooth action rotating control
"Clicks" off in the full counter-clockwise position
Improved high-quality rheostat has 12mm of threads for mounting in extra thick panels
Just 1.75 inches x 1.75 inches square. 1/4 inch shaft with high quality knob

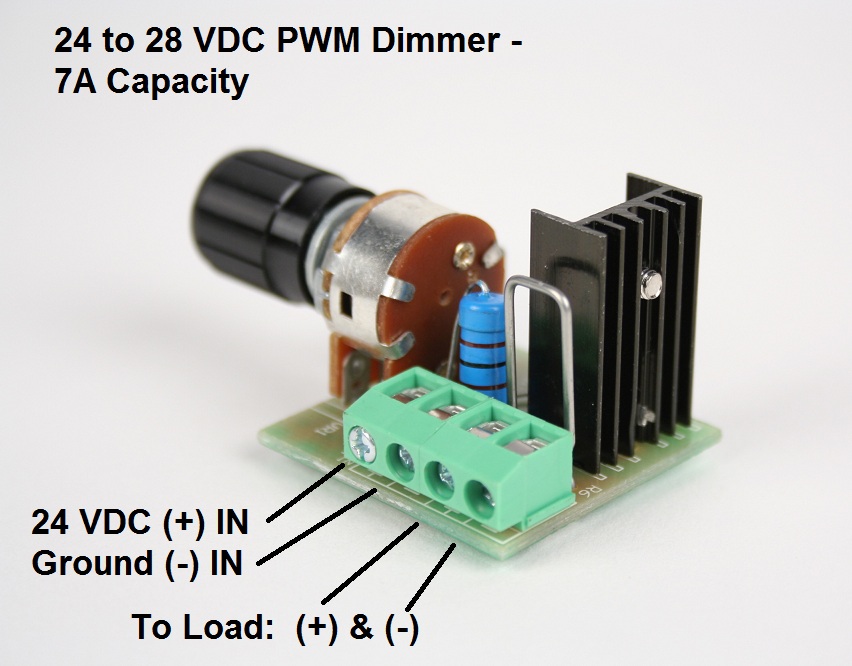

Screw down terminals for input and output wiring. Very easy to install
Powerful enough to operate numerous panel lights and convenience lights
To install, drill hole, wire input and output to screw terminals and install

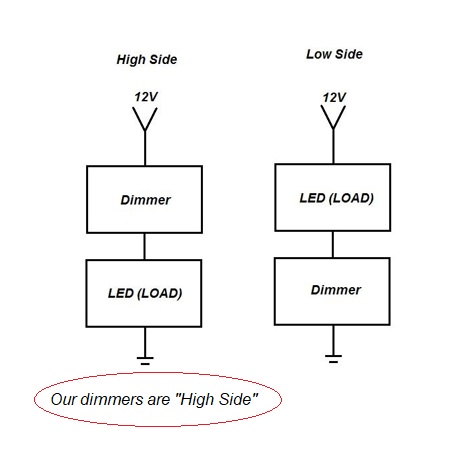

"High side" dimmer - connects between your power source and the LED / Incandescent load.

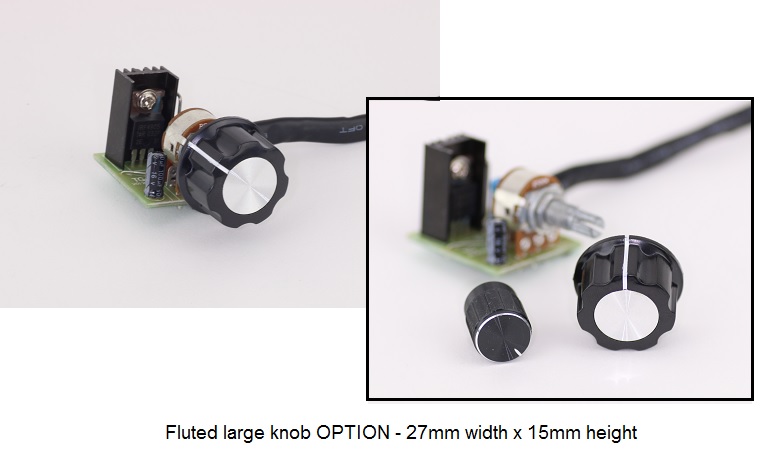

High-quality push-on type knob provided. An optional larger fluted knob is available for an additional charge.

Part number: 24VDimmer01-7A
