or email us at: sales@brittaproducts.comFlashing & Constant On - BEACON & POSITION LIGHT - RA7512 (RA-7512) W1290 NAV BULB REPLACEMENT - 3W 12V 24V BAY15S
$0.00
New for 2020 !
Same as our standard 3W RA7512 (12 or 24V) Navigation / Position lights but with a flashing option. Designed to improve daytime visibility to other traffic.
-

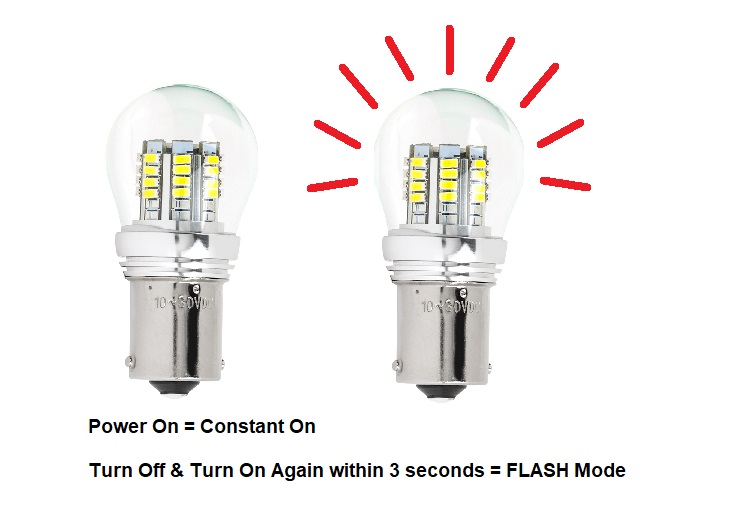

Power On and the bulb(s) are in standard constant-on mode
-
Turn off and then turn back on within 3 seconds and the bulb(s) switch to a triple-flash pattern

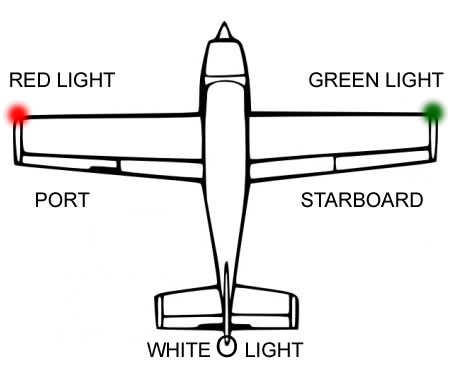

- Applications include: Rotating Beacons, Position Lights, Navigation Lights
- 3.0 Watts of power; Low power consumption (less than 220mA @13.8V vs. 1.75A for incandescent bulbs)
- 14VDC and 28VDC compatible

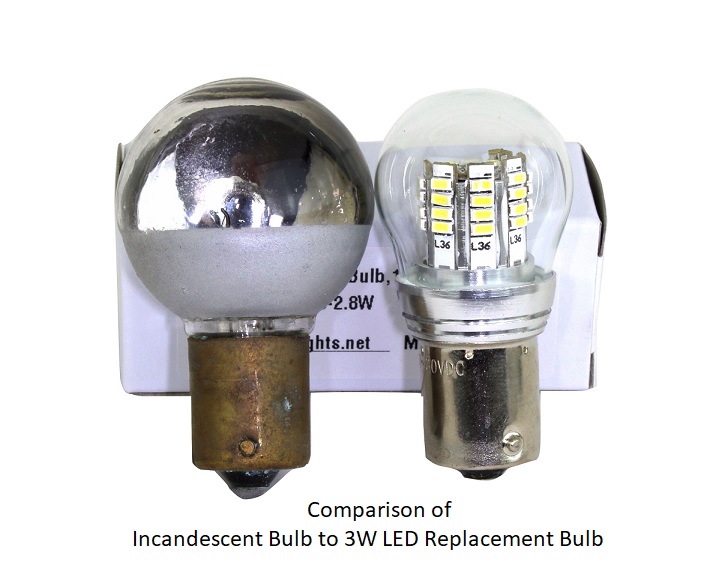

- Over 30% brighter than incandescent
- Cool White color temperature
- Fully sealed glass dome protects the bulb from moisture and dust
- No RFI design

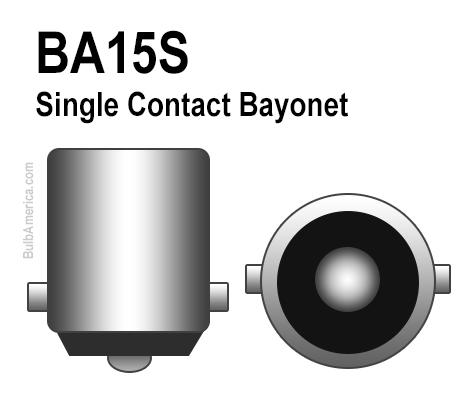

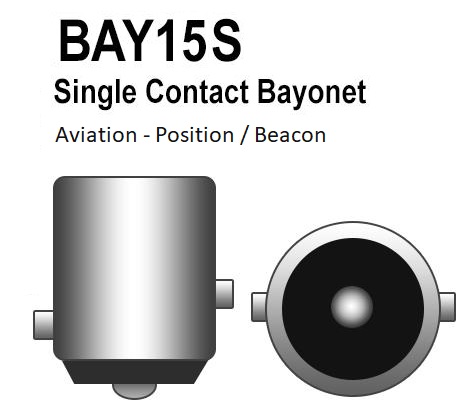

Sold individually, in 2-Packs or a 3-bulb pack (2 wing bulbs - BAY15s and one tail bulb BA15s).

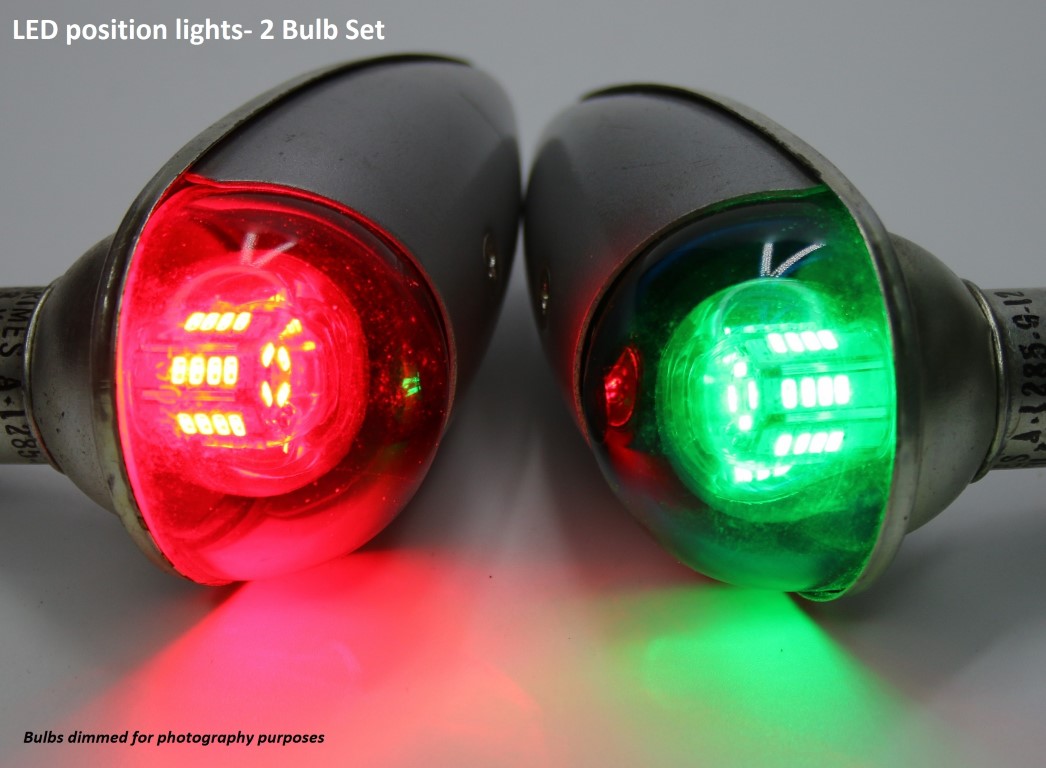

- Fits Grimes and Whelen navigation / position light fixtures and beacons. Greatly exceeds light output of standard bulbs.
- Ideal for Uavionix tail beacon and sky beacon users.
- Note: Flashing mode is recommended only for daytime operations. Night operations requires constant-on position lights per regulation.
- Experimental Aircraft Only (for Certified aircraft - these bulbs meet FAA illumination guidelines but have no STC/PMA - ask your IA/A&P to consider these as a "minor alteration" (suggested log entry might read "replaced incandescent position light bulbs with equivalent LED replacements, dated ##/##/##"...)
BAY15s version replaces 7079-12 , 7079-24 , NLI-7079-12 , NLI-7079-24 , MS25338-7079 , RA7079-12 , RA7079-24 , A-7079B-12 , A-7079B-24 , S1926-1 , 11105B , 752-307 , 752-465, 7079B-12 and others.
SKU (wing): RA-7512-WING-FLASH-V1
SKU (tail): RA-7512-TAIL-FLASH-V1
List price: $0.00
Catalog:
Price: $0.00
Weight: 3 oz
Dimensions: 1.2 in × 0.75 in × 1.2 in
